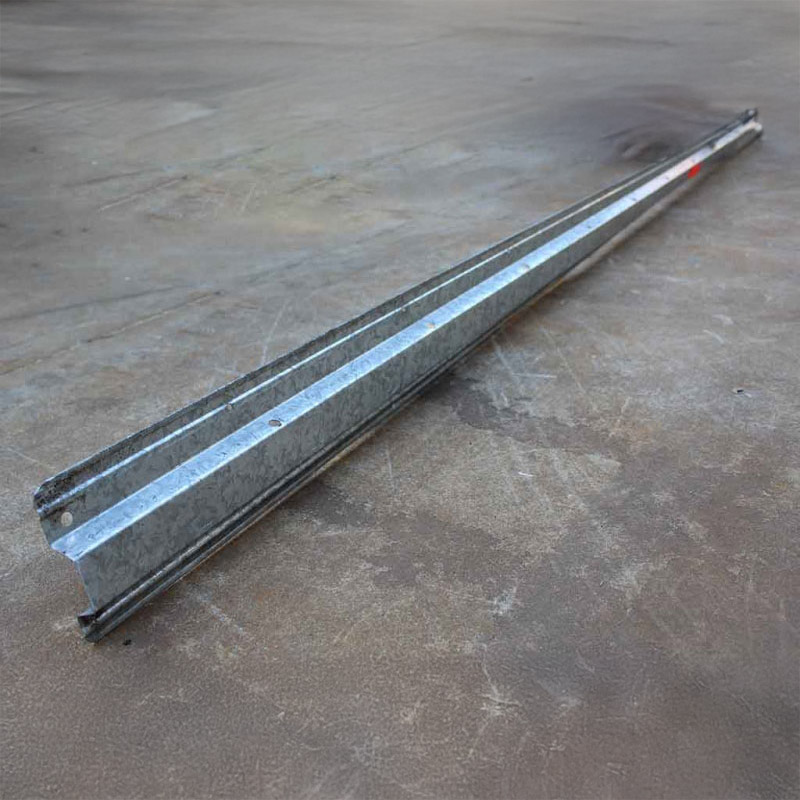

Connolly Key Joints

Connolly Key Joints are an expansion joint that provides a durable and rigid straight line that can be utilised for expansion joint forming in either end of pour or continuous pour situations. They are basically a galvanized steel tongue and groove formwork which when installed joins the slab to form the control joint.

A Connolly peg and wedge system is used to hold the joint in place. Installation is quick and easy and delivers precise height adjustments. The rigid steel profiles produce straighter joints. Useful for controlling cracks on large slabs, including residential home slabs and industrial applications.

The system includes dowels, sleeves, expansion foam, wedges and pegs and is available in 6m lengths and 3 heights, 100, 150 and 200mm.

Connolly Key Joints
Expansion Joint

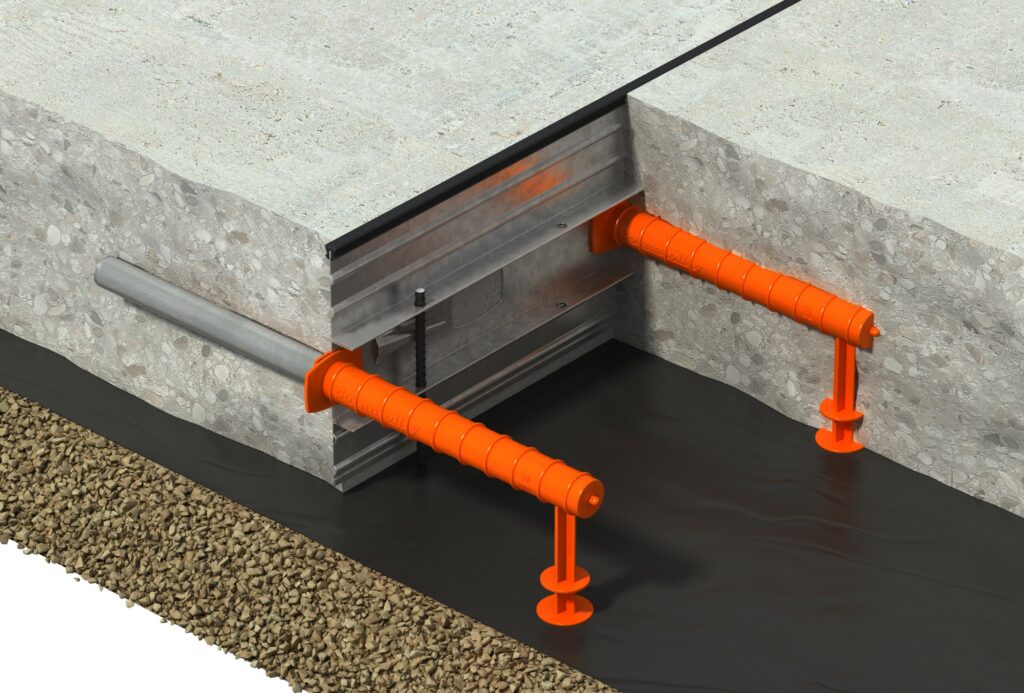

Connolly EXJ Expansion Joint System

The Connolly Expansion Joint is a continuous pour solution for expansion joints in slab on ground applications.

The straight profile guarantees that the load is transferred through the dowels only.

Connolly Expansion Joints are a roll-formed galvanised steel section with 10mm cross-linked foam to provide a leave in place formwork that allows for joint expansion. The profile is fixed in place using the patented peg and wedge system.

Get a fast quote

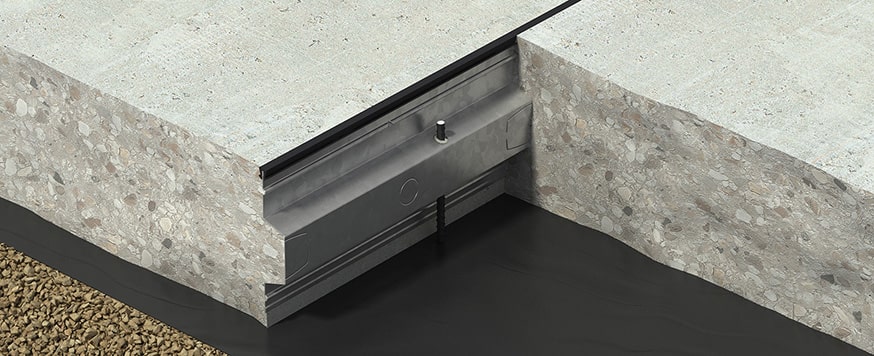

Connolly Key Joint Concrete

Connolly Key Joint

Connolly Key Joints are a continuous pour solution for contraction joints in slab on ground applications.

They are a roll-formed galvanised steel section used as a leave-in-place formwork to control shrinkage induced cracking. The profile is fixed in place using the patented peg and wedge system.

Our unique tongue profile provides positive load transfer with minimal stepping.

Get a fast quote

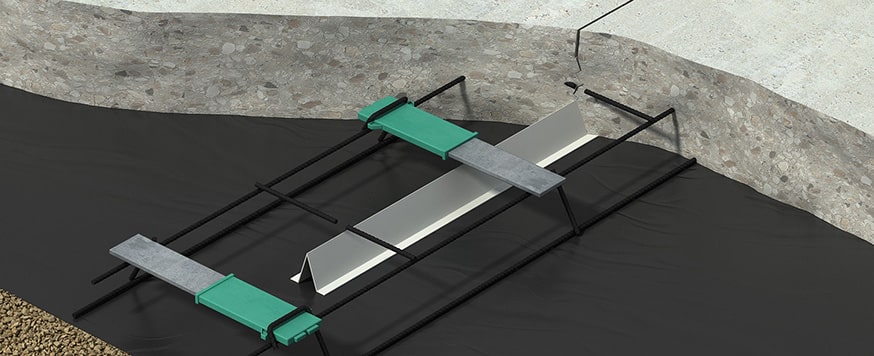

Connolly Dowel Cradles

Connolly Dowel Cradles

Dowel cradles are used for load transfer in saw cut contraction joints. They are a welded wire assembly that ensures the horizontal and vertical alignment of dowels at the correct spacing and height.

Maintaining correct alignment of dowels across the joint is recognised as being the most important aspect of forming a dowelled joint.

Connolly dowel cradles are produced with either round, square or plate dowels. All Dowel Cradles are supplied with a de-bonding sleeve to one half of the dowel to allow for contraction. Square and plate dowel Cradles also allow for lateral movement.

Get a fast quote

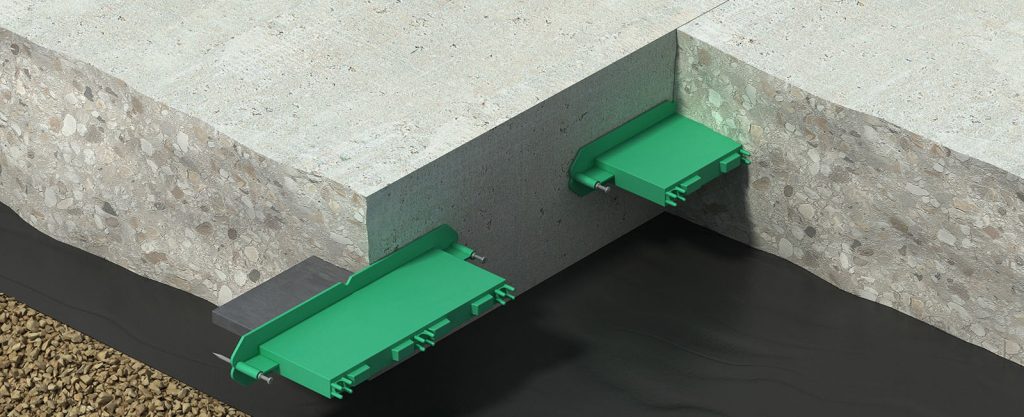

Biscuit Plate Dowels

Biscuit Plate Dowels

Connolly Biscuit Plate Dowels and Sleeves are designed to transfer loads across construction joints in slab-on-ground applications.

The plastic sleeve encases one half of the plate dowel to de-bond the dowel from the concrete. Connolly Biscuit Plate Dowels allow for expansion, contraction and lateral movement at the joint.

Available in 6mm and 10mm thickness in black, hot-dip galvanised or stainless steel finish. With pre-installed nails, and V-notches on all sides, they can be easily and accurately installed on conventional formwork, ensuring perfect dowel alignment.

Get a fast quote

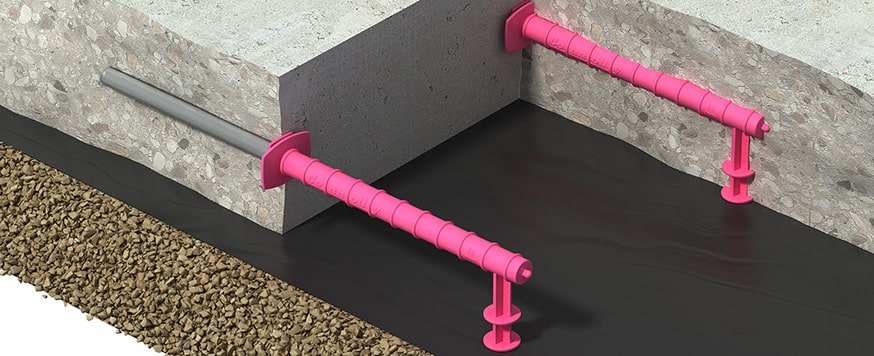

Universal Dowel Sleeves

Universal Dowel Sleeves

Connolly Universal Dowel Sleeves are available for round and square dowels, to allow for load transfer across joints in slab-on-ground applications.

The sleeve encases one half of the dowel to de-bond the dowel from the concrete. All Connolly Universal Dowel Sleeves allow for expansion and contraction at the joint. Square dowel sleeves also allow for lateral movement at the joint.

The Universal Dowel Sleeve is equipped with a patented, integrated support leg, which can be adjusted to suit multiple slab heights. This unique feature assists with accurate dowel alignment.

Get a fast quote
Straight Up Contraction Joint

Straight Up Contraction Joint

The Connolly Straight Up Contraction Joint is a continuous pour solution for contraction joints in slab on ground applications.

The straight profile guarantees that the load is transferred through the dowels only.

Connolly Straight Up Contraction Joints are a roll-formed galvanised steel section to provide a leave-in-place formwork. The profile is fixed in place using the patented peg and wedge system.

Get a fast quote
Reozone Vector

Connolly Key Joint Sizes

Reference Description Length (mm) Width (mm) Mass (Kg)
KJ100 Key Joint 6000 100 4.9
KJ150 Key Joint 6000 150 7.5
KJ200 Key Joint 6000 200 9.8
Reference Description Length (mm)
PW100 Pegs to suit 100mm Keyjoint 350
PW150 Pegs to suit 150mm Keyjoint 390
PW200 Pegs to suit 200mm Keyjoint 500
Reference Description Length (M) Mass (Kg/Roll)
KJCAP Removable Strip 24 2.5
KJPCAP Permanent Strip 24 2.5
KJPCAPRS Rip-O-Strip Black Capping 24 2.5
Reozone Vector

Get In Touch

Do you have a question?
Send us an enquiry via the form below and a representative will be in touch.

If you would like a custom quote or would like to discuss your specific requirements about Connolly key joints please don’t hesitate to contact one of our friendly professional staff via phone, email or the online enquiry form.

Reozone has more than 30 years of experience in the steel reinforcement industry. We pride ourselves on the quality of our products and the high level of service we provide to each and every customer.

Get in touch with us today and see how we can assist with your construction project.
