Reinforcing Mesh
Reinforcing Mesh or Reo Mesh, is used for improving the tensile strength of concrete and preventing cracks to structural elements. Buy from Reozone (a leading steel reinforcement supplier).
Reinforcing Mesh is manufactured from welded wire fabric or prefabricated steel reinforcement material and comes in a variety of sizes most commonly square grid or rectangular patterns.

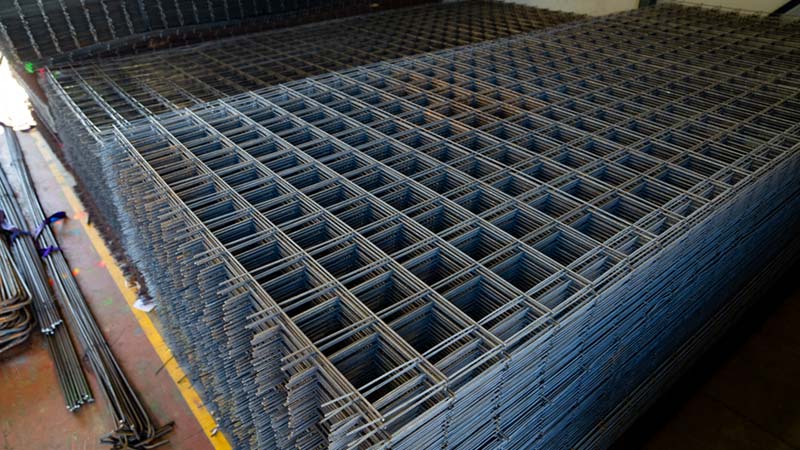

Square Mesh
Square Mesh is a general-purpose concrete reinforcing mesh utilised for flat concrete areas such as floors and/or walls, it can also be used for trailers, fencing, gates, shelving and more, the list is nearly endless. D500L Grade Ribbed Wires are welded together during manufacture to make the square apertures.

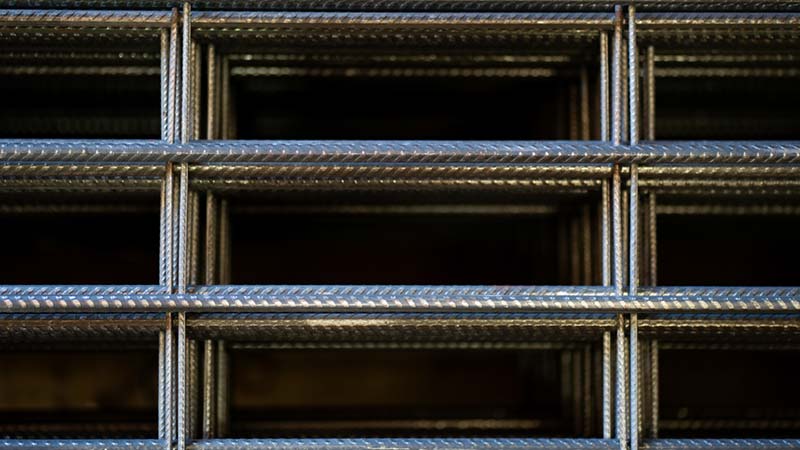

Rectangular Reinforcing Mesh
Rectangular Reinforcing Mesh is utilised for walls and concrete floor slabs, it is a reinforcement product that is fabricated from D500L grade ribbed wires and is ideal when additional strength is required for a chosen direction. Common uses can include warehouses, precast concrete sections, shed slabs, pavement areas, patio slabs and residential/commercial driveways.

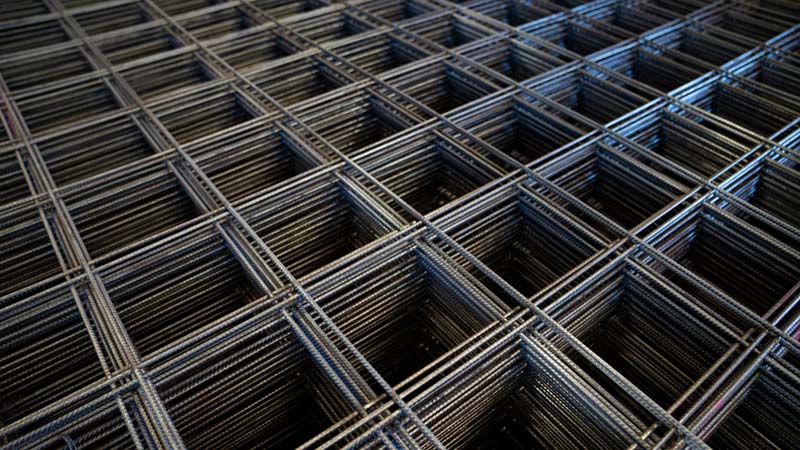

Ute Mesh
Ute Mesh or Ute Reo as it is also known is specifically designed and manufactured to fit safely (and legally) onto the back of utes and trucks without any dangerous overhang. This allows the sheets to be transported safely. Given their size, Ute Mesh sheets are able to be handled by one person. A great option when you need a solution for small jobs or areas with tight access.

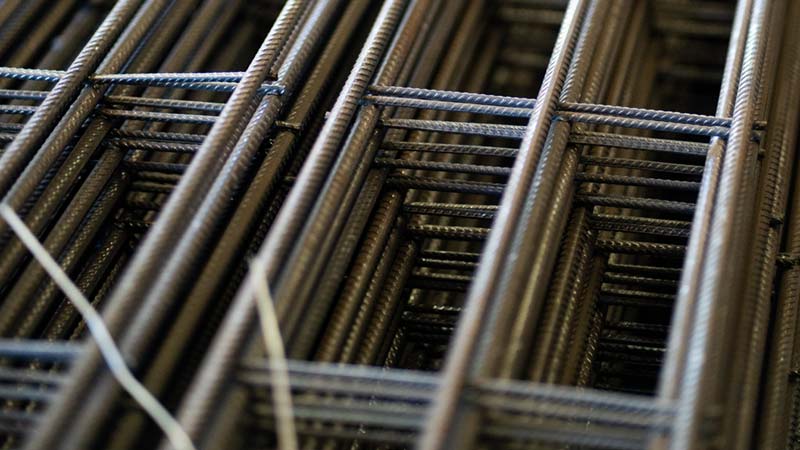

Trench Mesh
Trench Mesh is used primarily for residential footing trenches and concrete beams. Reozone manufactures it from D500L ribbed wire using a range of longitudinal wires which can be up to 12mm in diameter. Useful for residential, commercial and industrial footing trenches.

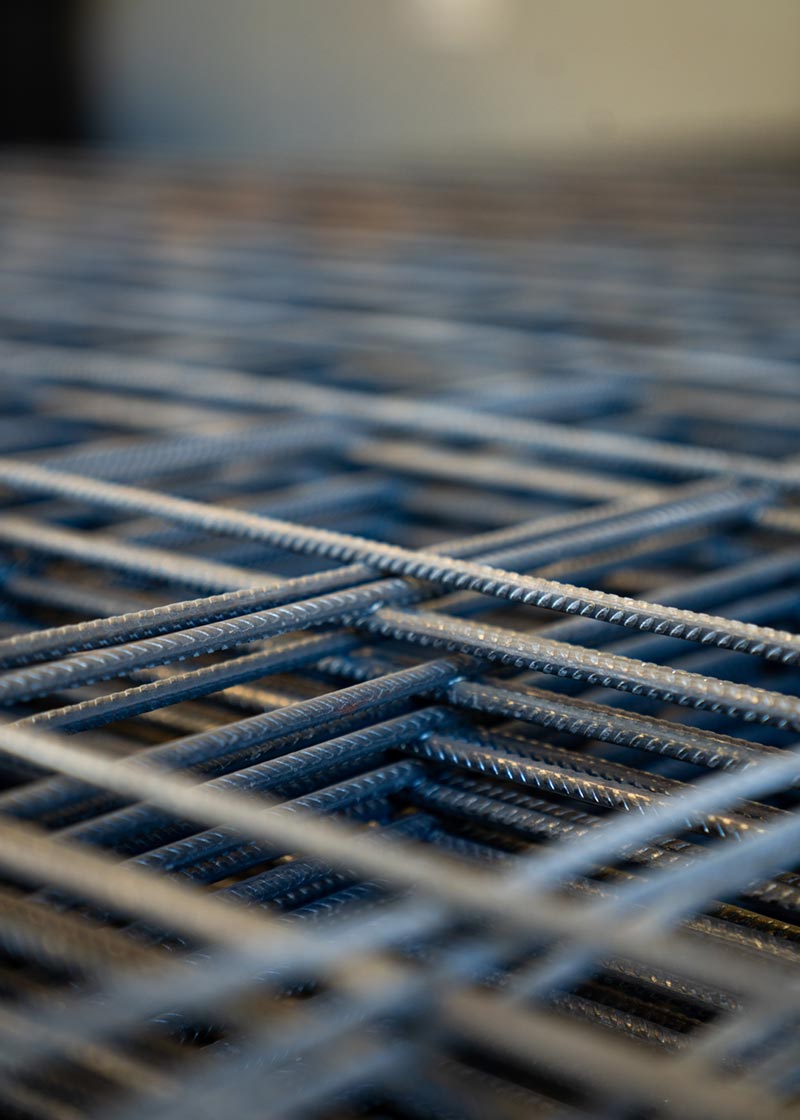

Reinforcing Mesh Sizes
We have one of the largest ranges of concrete reinforcing mesh sizes in Sydney. Standard sheet sizes range from 4m (length) x 2m (width) 8m2 up to 6m (length) x 2.4m (width) 14.4m2.
Longitudinal Wire sizes (in millimetres) include: 5 @ 200, 6 @ 200, 6.75 @ 200, 7.6 @ 200, 8.6 @ 200, 9.5 @ 200, 6.75@ 100, 7.6 @ 100, 8.6 @ 100, 9.5 @100, 10.7 @100 and 11.9 @ 100.
Edge Wire sizes (in millimetres) include: 4.77 @ 100, 5.37 @ 100, 6 @100, 6.75 @ 100.
Cross Wire sizes (in millimetres) include: 4.77 @ 200, 6 @ 200, 6.75 @ 200, 7.6 @ 200, 8.6 @ 200, 9.5 @ 200, 7.6 @ 100.
DIFFERENT REO MESH SIZES
6m (length) x 2.4m (width) 14.4m2
- 4m (length) x 2m (width) 8m2
Reo Mesh Built Strong For All Applications
All Reo Mesh manufactured by Reozone is fully compliant with relevant
Australian Quality Standards.
We use the latest state-of-the-art equipment to ensure our customers receive only the very best steel reinforcing mesh to suit their specific needs. Some common applications for concrete reinforcing fabric include:
- Precast building components
- Reinforcement of concrete slabs
Driveways
Slab Floors
- Pre-fabricated cages
- Retaining Walls
If you want to learn more about the applicability of reinforcing mesh you can check out our article on Do you need reinforcing mesh in your concrete slab? We also have a brief guide on lapping which you may find useful.
One of Sydney’s Leading Concrete Mesh Suppliers
Reozone have extensive experience in both the manufacture and supply of only the best quality concrete mesh.
We have supplied our Reo Mesh products to customers not only in St. Marys or Sydney but also spread throughout New South Wales.
All of our products adhere to Australian Quality Standards and when you are dealing with Reozone, be rest assured you are dealing with a company that points the customer at the centre of everything they do.
We have a large team of fully qualified professionals who are on hand and ready to assist you with your reinforcing mesh needs. Please reach out to us today to see how we can assist you.
Contact us for a Free Quote.
