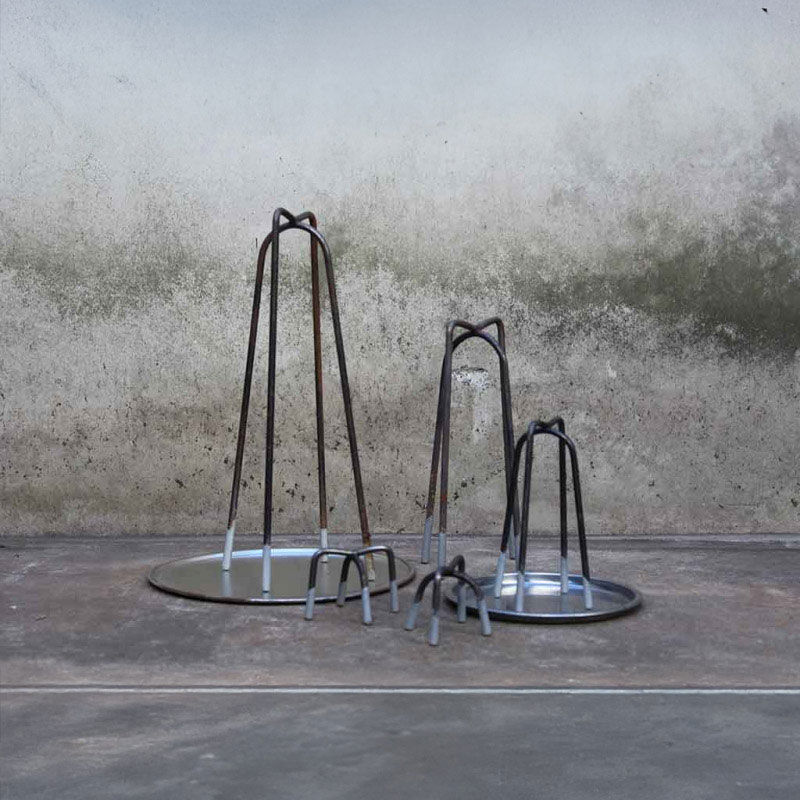

Metal Bar Chairs
Metal Bar Chairs are primarily utilised to set reinforcing mesh and bars into correct positions which assists with the prevention of exposure to corrosion and other environmental elements. The steel legs are covered in a plastic film to assist with protection.
Metal Bar Chairs are able to used in beams, vertical walls, suspended concrete slabs and slab on ground applications. Available in a complete range of sizes from 20mm to 340mm. Plastic-tipped Metal Bar Chairs are supplied in bags of 25, 50 or 100, please see our full range of sizes below. We also stock and supply Metal Chair Bases.
They won’t require any adjustment after the concrete pour and they assist with the consistent placement of reinforcing in slabs. It is recommended that plastic-tipped wire bar chairs aren’t utilised close to coastlines. Check out our other reinforcing accessories.
Metal Bar Chair Sizes
| Reference | Height (mm) | No. Per Bag |
|---|---|---|
| PTBC020 | 20 | 100 |
| PTBC025 | 25 | 100 |
| PTBC030 | 30 | 100 |
| PTBC040 | 40 | 100 |
| PTBC050 | 50 | 100 |
| PTBC065 | 65 | 100 |
| PTBC075 | 75 | 100 |
| PTBC085 | 85 | 100 |
| PTBC090 | 90 | 100 |
| PTBC100 | 100 | 100 |
| PTBC110 | 110 | 50 |
| PTBC120 | 120 | 50 |
| PTBC130 | 130 | 50 |
| PTBC140 | 140 | 50 |
| PTBC150 | 150 | 50 |
| PTBC160 | 160 | 50 |
| PTBC170 | 170 | 50 |
| PTBC180 | 180 | 50 |
| PTBC190 | 190 | 50 |
| PTBC200 | 200 | 50 |
| PTBC210 | 210 | 50 |
| PTBC220 | 220 | 50 |
| PTBC230 | 230 | 50 |
| PTBC240 | 240 | 50 |
| PTBC250 | 250 | 50 |
| PTBC260 | 260 | 50 |
| PTBC270 | 270 | 50 |
| PTBC280 | 280 | 25 |
| PTBC290 | 290 | 25 |
| PTBC300 | 300 | 25 |
| PTBC320 | 320 | 25 |
| PTBC340 | 340 | 25 |
| Reference | Max Size (mm) | Chart Height (mm) | No. Per Pack |
|---|---|---|---|
| SM-BASE | 150 Diameter | 20 – 180 | 100 |
| LM-BASE | 230 Diameter | 190 – 300 | 50 |
