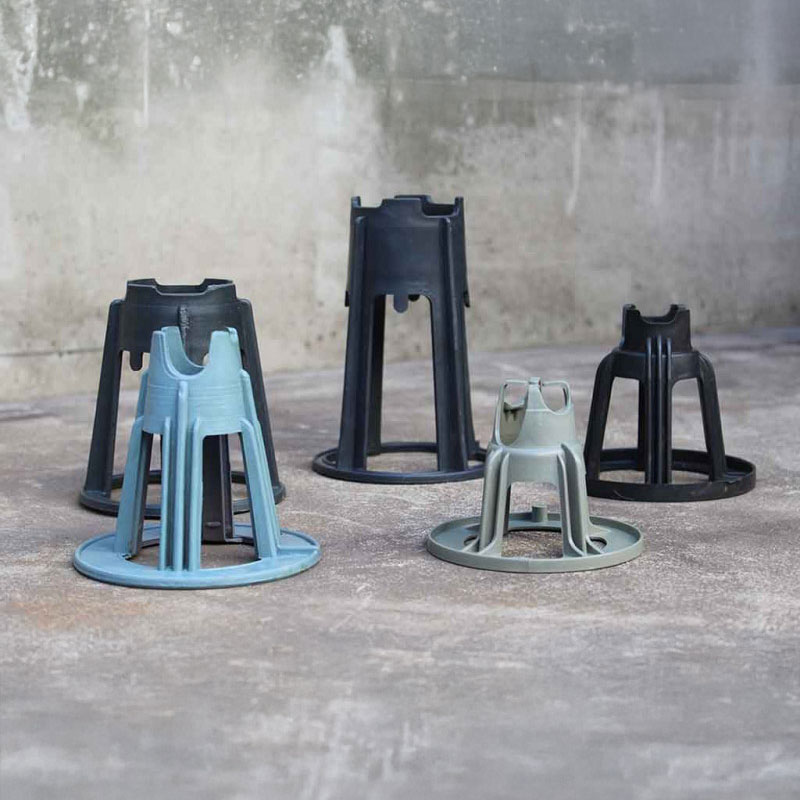

Plastic Bar Chairs are an accessory utilised in concreting applications to support both the reinforcing bar and mesh as well as to ensure the correct coverage of concrete over the reinforcement area. In summary, Plastic Bar Chairs are for the purpose of positioning mesh in the concrete slab.

Please take a moment to browse our range of plastic bar chairs and plastic reinforcement spacers below and reach out to us if you have any questions or would like to place an order.

Plastic Bar Chairs
Plastic Fastwheel Spacers

Plastic Reinforcement Spacers

We carry stock of Plastic Fastwheel spacers, suitable for precast walls and coloumns, as well as Plastic Clip Fast Bar Chairs (Mesh Type) and Plastic Clip Fast Bar Chairs (Bar Type).

Our products utilise a convenient clip system which allows them to be fast and simple to use whilst also minimising any unwanted movement. If you require a spacing solution we are sure to have something that will suit your needs.

Full details of our available products and sizes can be found below.

Plastic Clip Fast Bar Chairs (Bar Type)

Designed specifically for bars, Clip Fast Bar Chairs come in a variety of sizes ranging from 20mm to 75mm and are sold in bags of 100. They are coloured grey in order to match the natural colour of concrete and are an excellent economical product designed for good stability and reduced exposure. Can be used for tilt-up, recast and wall panels.

Plastic Clip Fast Bar Chairs (Bar Type) Sizes

Reference Height (mm) No. Per Bag
PCF20B 20 100
PCF25B 25 100
PCF30B 30 100
PCF40B 40 100
PCF50B 50 100
PCF65B 65 100
PCF75B 75 100

Plastic Clip Fast Bar Chairs (Mesh Type)

Designed specifically for Mesh, Plastic Clip Fast Bar Chairs are simple to clip on and are commonly used in tilt-up, precast and wall panels. They are able to be used with various wire sizes and are sold by Reozone in bags of 100. Heights range from 20mm to 75mm. Each chair is designed to be installed at the intersection of the mesh, to allow for increased stability and strength. Each clip has a grey colour and if you want to maximise aesthetics then used with Clip Fast bases.

Plastic Clip Fast Bar Chairs (Mesh Type) Sizes

Reference Height (mm) No. Per Bag
PCF20M 20 100
PCF25M 25 100
PCF40M 40 100
PCF50M 50 100
PCF65M 65 100
PCF75M 75 100

Plastic Fastwheel Circular Spacers

These Plastic Fastwheel Circular Spacers provide 360 degree coverage, they are suitable for precast walls and columns. They will hold firmly in place and won’t turn when correctly in position. The coverage will remain the same even if the size of the bar is increased. They are designed to connect to the fitment to keep it in a vertical position, enabling rotation once the formwork is installed. Can suit bar sizes from 8mm to 20mm.

Plastic Flywheel Circular Spacer Sizes

Reference Size (mm) Bar Size (mm) No. Per Bag
12PFW20 20 8 to 12 100
12PFW25 25 8 to 12 100
12PFW30 30 8 to 12 100
12PFW40 40 8 to 12 100
12PFW50 50 8 to 12 100
12PFW60 60 8 to 12 100
12PFW75 75 8 to 12 100
20PFW30 30 16 to 20 100
20PFW40 40 16 to 20 100
20PFW50 50 16 to 20 100
20PFW60 60 16 to 20 100
20PFW75 75 16 to 20 100

Slab On Ground Plastic Bar Chairs

Clip Fast Plastic Slab On Ground Plastic Bar Chairs are ideal for deep ground slabs such as those found in many civil, roads or commercial projects. They are a lightweight and economical alternative to metal chairs. As they are plastic they have no rust issues. They have been tested to be able to handle loads in excess of 500kg. They can be supplied in various heights from 40mm to 150mm and are sold in bags of 100.

Slab On Ground Plastic Bar Chairs Sizes

Reference Size (mm) No. Per Bag
SOG2540 25 x 40 100
SOG5065C 50 x 65 (Clip On) 100
SOG7590 75 x 90 100
SOG85100 85 x 100 100
SOG105110 105 x 110 100
SOG115120 115 x 120 100
SOG125130 125 x 130 100
SOG135140 135 x 140 100
SOG145150 145 x 150 100
